Shining 3D EINSTAR
TitleSmall scanner with huge potential
The EINSTAR handheld scanner from Shining 3D offers an impressive combination of precision, flexibility and ease of use. Thanks to its advanced sensor technology, it delivers high-resolution 3D scans for a wide range of industries, from product design to medical technology.
The compact and lightweight scanner is easy to use and mobile, both on site and in the studio. Discover the benefits of the EiINSTAR handheld scanner and improve your 3D scanning processes with this small but powerful device.
TitleHigh-quality 3D data
The EINSTAR handheld scanner from Shining 3D delivers high-quality 3D data with an impressive accuracy of up to 0.1mm. Thanks to its advanced sensor technology, it captures even the finest details and generates precise 3D models that are ideal for demanding applications such as reverse engineering, design or digital archiving.
With the ability to capture geometry as well as colors and textures, the EINSTAR delivers realistic and detailed results. This high-quality 3D data can be seamlessly integrated into various 3D software solutions for further processing.
TitleRealistic color rendering
The EINSTAR handheld scanner from Shining 3D captures precise 3D geometry data as well as the colors and textures of the scanned object in high quality.
This function enables realistic color reproduction, which is particularly important for applications such as art, design or cultural assets.
The detailed capture of color tones creates realistic 3D models that are visually appealing and versatile.

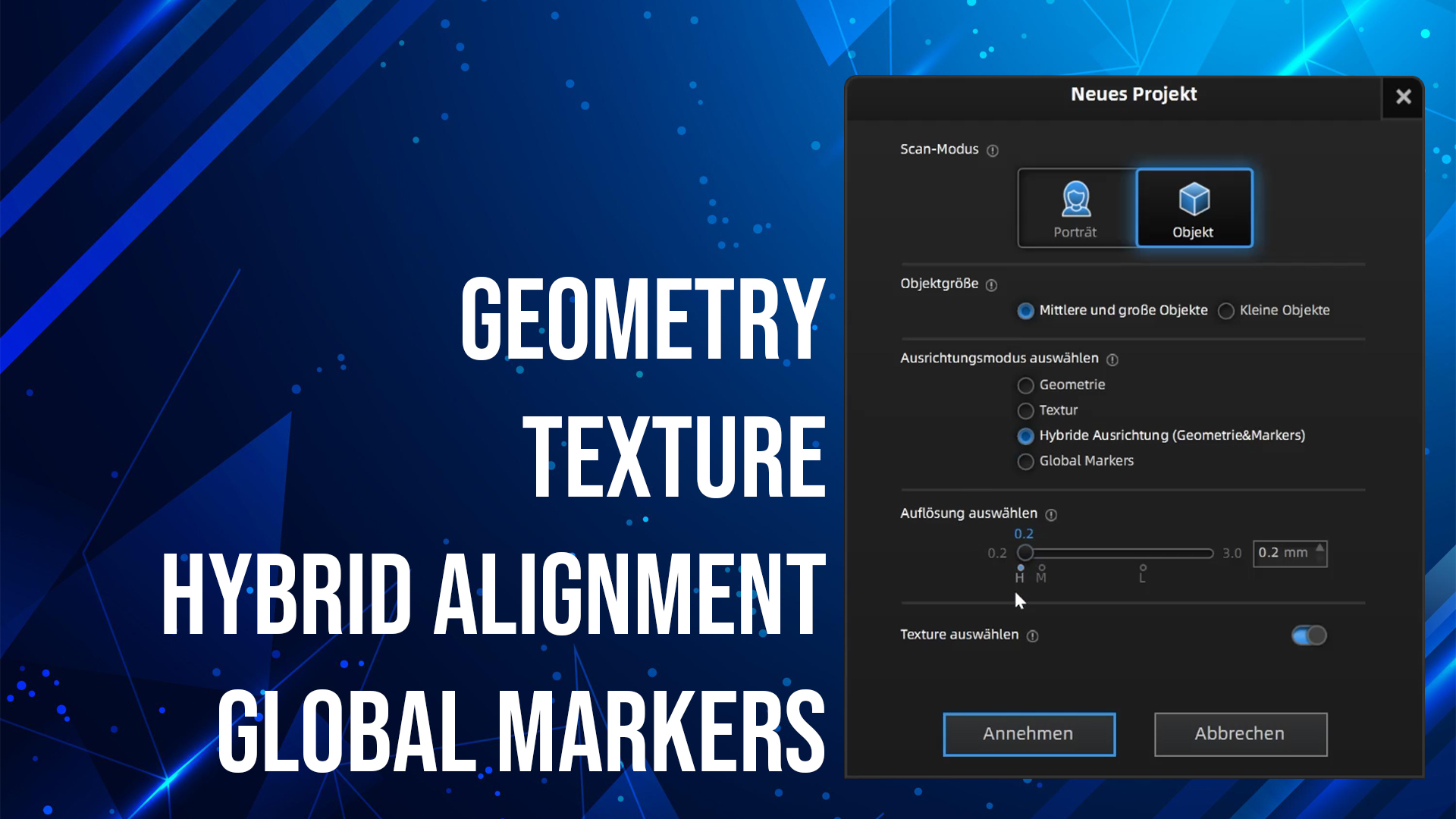

TitleAlignment modes
The EINSTAR handheld scanner from Shining 3D offers four alignment modes that enable precise data capture and merging depending on the scanning situation and object:
- Feature alignment
- Hybrid alignment
- Texture alignment
- Global markers
TitleIndoor & outdoor scanning
The EINSTAR hand-held scanner is versatile and suitable for both indoor and outdoor use.
Thanks to its robust design and precise sensors, it reliably captures objects in various environments, from indoor spaces to complex outdoor areas.
This makes it ideal for applications in architecture, industry and outdoor projects where flexible and accurate 3D scanning is required.
TitleEXScan software
EXScan software maximizes the performance of the EINSTAR handheld scanner with advanced data processing and model optimization features.
It enables precise editing and processing of 3D data, including customization of scans and creation of detailed models.
In addition, the software provides a user-friendly interface for exporting 3D data to common formats, facilitating integration with various 3D software solutions.
TitleVersatile handheld scanner
The EINSTAR handheld scanner from Shining 3D is used in numerous industries. In industry and manufacturing, it is used for precise quality control and reverse engineering, while in design and prototyping it delivers fast and detailed 3D models of products. It is also used in cultural heritage and the art world to digitize valuable objects. In addition, the scanner is used in the medical sector for the production of prostheses and individual orthopaedic aids, making it an indispensable tool in many professional fields.
TitleFields of application
Industry & production
The scanner is used for reverse engineering, quality control and product development to create precise digital models of components and products.
Design & prototyping
Designers and engineers use the scanner to quickly create 3D models of physical objects and use them in product development or for 3D printing prototypes.
Art & cultural heritage
Museums, artists and restorers use the scanner to digitize artworks and historical objects in 3D to preserve them for restoration, reproduction or archiving.
Architecture & construction
EINSTAR is suitable for recording building structures and terrain formations. It facilitates the planning, documentation and renovation of construction projects.
Education & research
Universities and research institutes use EINSTAR for training, scientific analysis and research projects where accurate 3D models are required.
Medicine & healthcare
In the medical field, the scanner is used for prostheses, orthopaedic aids and patient individualization by capturing precise 3D data of the body.
TitleHow the EINSTAR handheld scanner works
The EINSTAR handheld scanner from Shining3D combines advanced technology and user-friendly operation to provide you with an outstanding 3D scanning experience.
Whether you need detailed scans of industrial components, architectural structures or artistic objects, the EINSTAR provides you with precise and high-resolution 3D data in a few simple steps.
Title1. Preparation & calibration
Before you start scanning, you can calibrate the scanner with just a few clicks to ensure maximum precision.
Thanks to its compact design and ergonomic handle, the EINSTAR is quickly ready for use and adapts easily to your working environment, whether in the office or on site.
Title2. Capture an object
The scanner captures objects in real time by scanning the surface using several high-resolution cameras and lasers.
These sensors measure millions of points on the surface of the object and convert them into a detailed 3D point cloud model.
The high scanning speed of up to 14 fps enables fast and smooth data capture without any loss of quality.
Title3. Capture colors 6 textures
In addition to accurately capturing the geometry, the EINSTAR also offers the ability to capture color and texture data of the object.
This is particularly valuable for applications where realistic and visually appealing 3D models are required, such as in the art sector or when capturing cultural assets.
Title4. Data processing in real-time
During the scan, the captured point cloud is processed in real time in the associated Shining3D software.
The intuitive user interface allows you to directly monitor and adjust the progress of the scan.
The software smoothes and optimizes the data to provide you with a finished 3D model that can be processed or exported immediately.
Title5. Export & post-process data
Once the scan is complete, you can export the data in various 3D formats such as OBJ, STL or PLY.
These formats can be seamlessly imported into 3D modeling programs or CAD software, where you can use your 3D models for further applications such as design, prototyping or reverse engineering.
TitleEINSTAR - Handy & powerful
The Shining 3D EINSTAR offers high precision with an accuracy of up to 0.1mm and a scanning speed of 14 fps.
The working distance of 400mm to 600mm ensures flexibility in handling.
The 3D scanner supports OBJ, STL and PLY file formats for easy integration into common 3D software.
These specifications make it ideal for professional 3D scanning applications.
TitleSpecifications
Scanner specs
| Specs | Values |
|---|---|
| Light source | Infrared VCSEL structured light* |
| Point distance | 0.1mm ~ 3mm |
| Effective working distance | 160mm – 1400mm |
| Optimum working distance | 400mm |
| FOV | 434mm x 379mm (under optimal working distance) |
| Scan rate | 980,00 points/s, up to 14 fps |
| Alignment modes | Texture/ Feature/ Hybrid Alignment/ Global Markers* |
| Safety | Eye-safe |
| Texture scan | Yes |
| Outdoor scanning | Yes |
| Output formats | OBJ, STL, PLY, P3, 3MF |
| Scanner dimensions | 220x46x55mm |
| Scanner weight | 500 g |
| Carrying case dimensions | 245x245x90mm |
| Operating temperatures | 0 – 40°C |
| Operating humidity range | 10 – 90% |
| Interface | USB 2.0 or higher |
| Certification | CE, FCC, ROHS, WEEE, KC |
*The EINSTAR infrared light source is certified as a class 1 laser product and is safe under all conditions of normal use.
*Global marker alignment is only available in object scan mode.
PC requirements
| Basic configuration | Recommended configuration |
|---|---|
| Operating system: Win10, 64 bits Graphics card: NVIDIA GTX1050 Video memory: <4 GB Processor: I7-7700H Storage: >16 GB | Operating system: Win10/11, 64 bits Graphics card: NVIDIA GTX1060 Video memory: >6 GB; Processor: I7-11800H Storage: >32 GB |
*Einstar requires a computer with an NVIDIA graphics card.
Better advice for users
Are you interested in our offer or would you like to find out more about EINSTAR handheld scanner? Then give us a call today and arrange a free, non-binding consultation. We will answer all your questions. As both a dealer and a user, we are ideally positioned to support you after your purchase.
