Permanent reference marker for laserscanning

Paragraphs
Dauerhafte Passmarke
Wysiwyg text

Durable precision and robustness - these are the hallmarks of our new checkerboard targets. These high-quality checkerboard targets are ideal for long-term projects, both indoors and outdoors. Their robust workmanship and weather resistance make them a reliable choice for professional surveying work.

Our checkerboard targets are made of sturdy 3mm thick aluminium composite panels that are not only extremely durable but also UV-protected. They retain their shape and function even under demanding weather conditions, making them perfect for outdoor use. The absolutely flat surfaces of these brands guarantee exact measurement results, while pre-drilled holes (Ø 6mm) allow them to be attached to various flat surfaces. Installation is quick and easy.

Title
Product characteristics overview

First column
Dauerhafte Passmarke
Second column

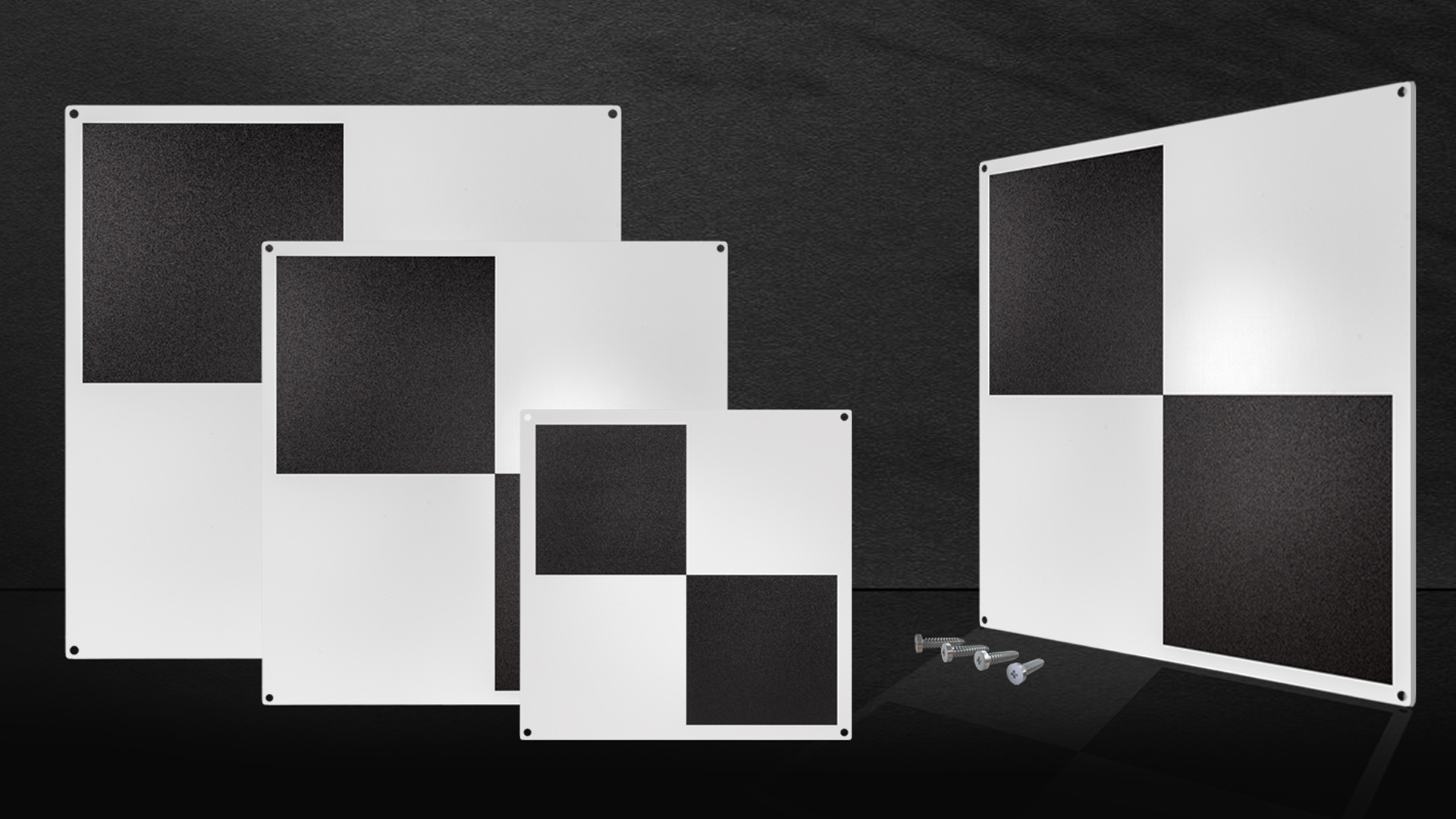

We offer three different sizes of our checkerboard targets as a permanent reference marker.

Characteristics:

  • Material: Sturdy 3 mm aluminium composite panels with UV protection
  • Sizes:
    • Dimension of the plate: 22x22cm, 32x32cm, 42x42cm
    • Dimension of the checkerboard: 20x20cm, 30x30cm, 40x40cm
  • Weight: 170g, 364g, 630g (depending on size)
  • Extras: Rounded corners and 4 pre-drilled holes for screws
  • Resistance: Weatherproof and suitable for long-term use
First column

Possible applications

Our checkerboard targets are optimised for a wide range of applications:

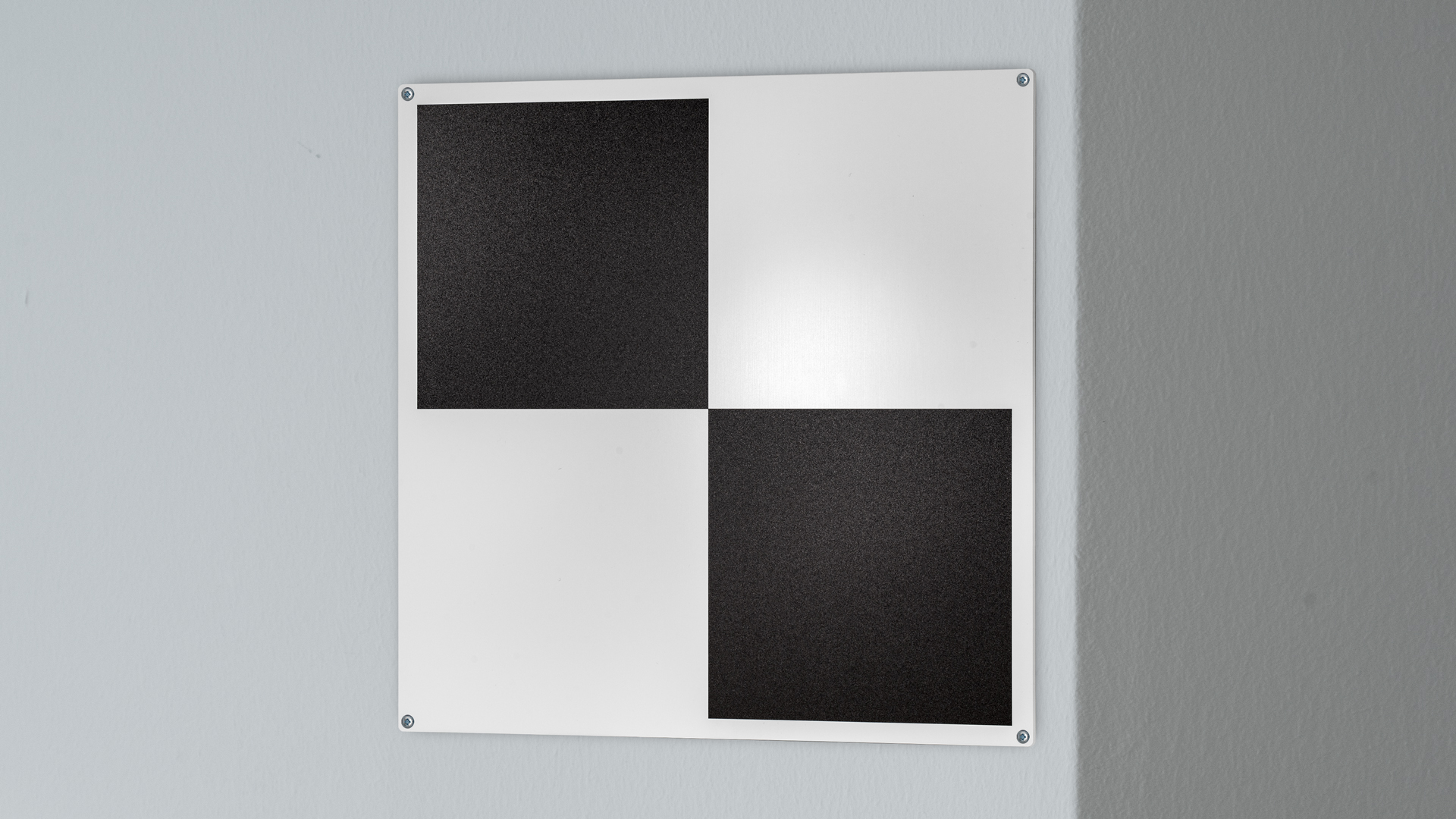

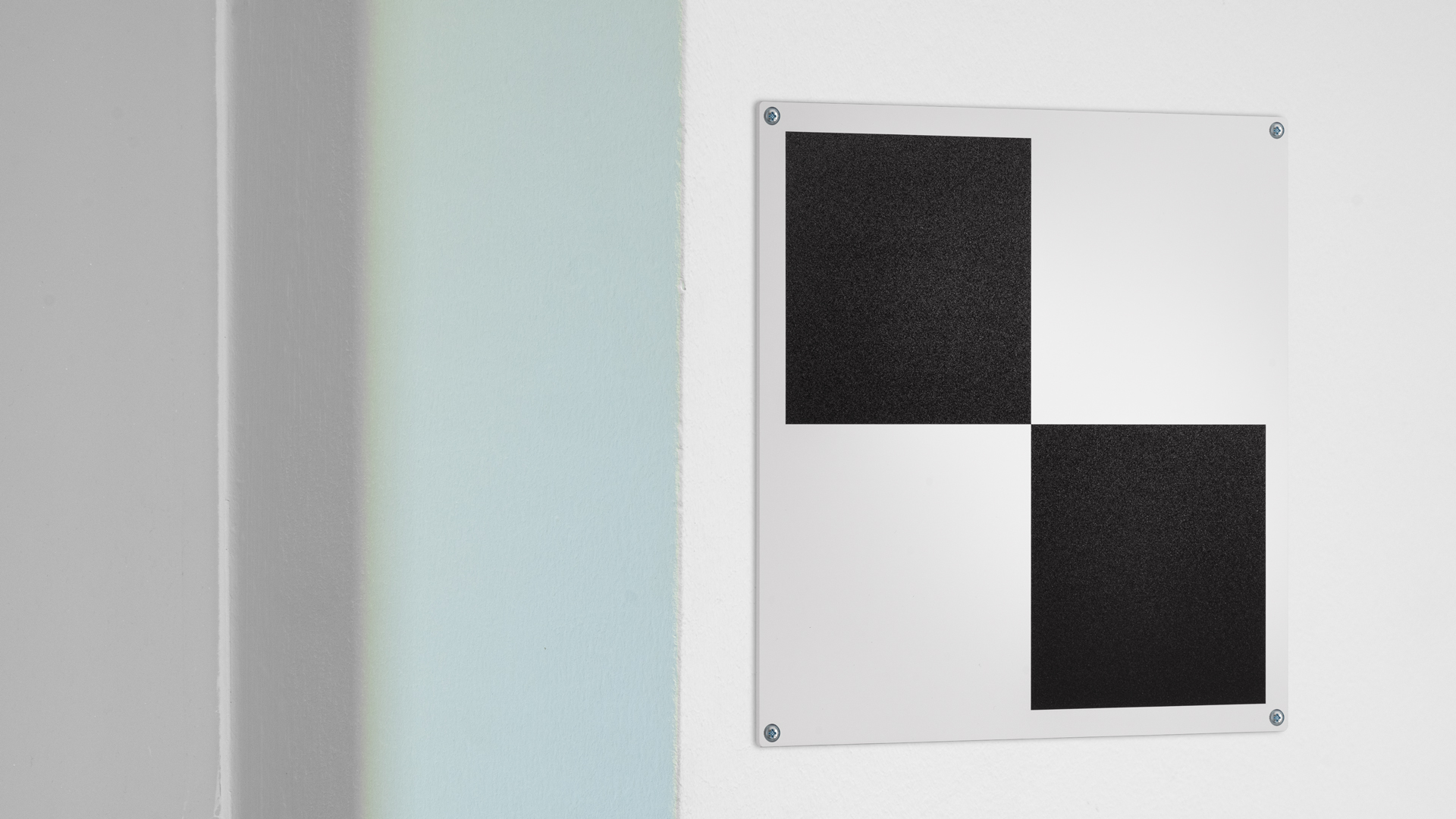

  • Permanent registration marks for buildings or terrain
  • Surveys with terrestrial scanners
  • Drone recordings in which the targets serve as orientation points
Second column

Your advantage

These checkerboard targets offer you maximum precision combined with easy handling and exceptional durability. The weather-resistant materials and UV protective coating ensure reliable use for many years - regardless of the conditions.

Title
Optimize your projects

First column

Visit our online shop and order your checkerboard targets today! Perfect for anyone who values quality, reliability and accuracy. Let us convince you of our selection and the advantages of these fitting brands.

Buy now

Second column
Dauerhafte Passmarke
